SPECIFICATIONS
Interactive Smart Board
All In One Computer Interactive Smart Board

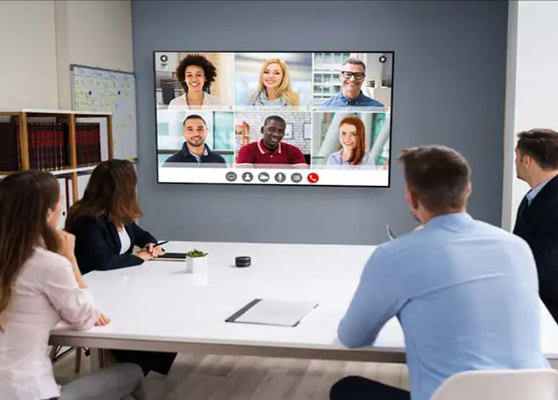

Interactive Smart Board is an integrated new technology to provide solutions of diversified office meeting, class teaching. It adopts HD LCD to act as a platform providing display and operation service. Aim to improve the efficiency of meeting, display and on-site instructions, It's designed with functions like writing, annotation, interaction, teleconference and multimedia, data transfer etc.
- Model: N-85I-S
- Active size: 85″
- Display Area: 1870.16*1051.52mm
- Display Ratio: 16:9
| Actual size | 85″ |
| Display Area | 1870.16*1051.52mm |
| Resoultion | 3840*2160 |
| Response Time | 5ms |
| Display Ratio | 16:9 |
| Refresh Rate | 60Hz |
| Display Color | 1.078 (8-bit+Dithering) |
| Color Gamut | NTSC (Typ) 72% |
| Contrast | 5000:1 |
| View Angle | 178° (H/V) |
| Brightness | 450cd/m2 |
| Service Life | 26000h |
| Touch Sensor | IR Touch |
| Support OS | windows 11/window 10/window 8/window 7/windows XP/Android/Linux/Mac OS X/Chrome |
| Touch Points | 20 Points |
| Minimum Identifier | 3mm |
| Writing Tools | Pen or Finger adn other opaque objects |
| Response Time | Less than 5ms |
| Display Color | 1.078 (8-bit+Dithering) |
| Touch Accurancy | 41mm (more than 90% touch area) |
| Writing Height | 3.5mm |
| communicate | Full speed USB |
| surface Hardness | 7H |
| Output Coordinates | 32767 (W)*32767 (D) |
| CPU | ARM Cortex-A55*4, quad core |
| Android Version | Android 11.0/13.0 |
| Frequency | 1.9GHz |
| GPU | ARM Mali-G52 Mp2 (2EE) |
| RAM | 8GB DDR4 |
| ROM | 128GB |
| Wifi | IEEE802.11an 2.4/S GHz |
| Cast Hotspot | IEEE802.11a/b/g/n Dual band 2.4GHz/5GHz Dual band |
| Bluetooth | BT:v2.1+EDR/BT:v3.0/BT:v3.0+HS0/BT:v4.0/BT:v5.0 |
| Software | Professional whiteboard software: rich functions, such as writing, drawing, shape, erase, gesture recognition, annotation, QR code scanning, recording etc.. Professional wireless presentation software: wireless transmission of signal form other devices of iOS, Android, Windows, macOS, chrome and ubuntu os to the interactive board |
| VLC Module (optional) | VLC Module:12M/48M HD Camera; 13M auto tracking camera; audio:8 microphone sound array system, audio pickup range up to 12M |
| Windows pro | Intel i3 CPU, 6th Gen, 3.7G Hz, DDR4-8G RAM, 256G SSD/ Intel i3 CPU, 8th Gen, 3.6G Hz, DDR4-8G RAM (optional) |
| Windows max | Intel i5 CPU, 6th Gen, 2.7G Hz, DDR4-8G RAM, 256G SSD/ Intel i5 CPU, 8th Gen, 2.8G Hz, DDR4-8G RAM (optional) |
| Windows Maxplus | Intel i7 CPU, 6th Gen, 3.4G Hz, DDR4-8G RAM, 256G SSD/ Intel i7 CPU, 8th Gen, 3.2G Hz, DDR4-8G RAM (optional) |
| Input Interface | HDMI*2, USB*2, RS232*1, RJ45*1, Earphone terminals CVBs*2,Touch Port*1 |
| Output Interface | Earphone terminals CVBs*1, RCA*1 |
| Front Panel | PC/AN-USB*2, PC-USB 3.0*1, HDMI Input*1,Touch Port*1, Remote control receiver*1, Type C |
| Type C |
| Power Supply | Ac 100V-240V, 50/60Hz |
| Power Consumption | Lessthan 285W |
| Front Speaker | 12W*2/15W*2 |
| Accessories | Infrared touch, remote control, manual, power cable, stand (optional) |
| VESA (mm) | 800*400 |
| Net Product Dimension (mm) | 1954.44*1165.2*89.1 |
| Net Product Dimension (kg) | 65.8 |
